ARDUINO CODE
/* Button Turns on and off a light emitting diode(LED)
   connected to digital  pin 13, when pressing a
   pushbutton attached to pin 2.

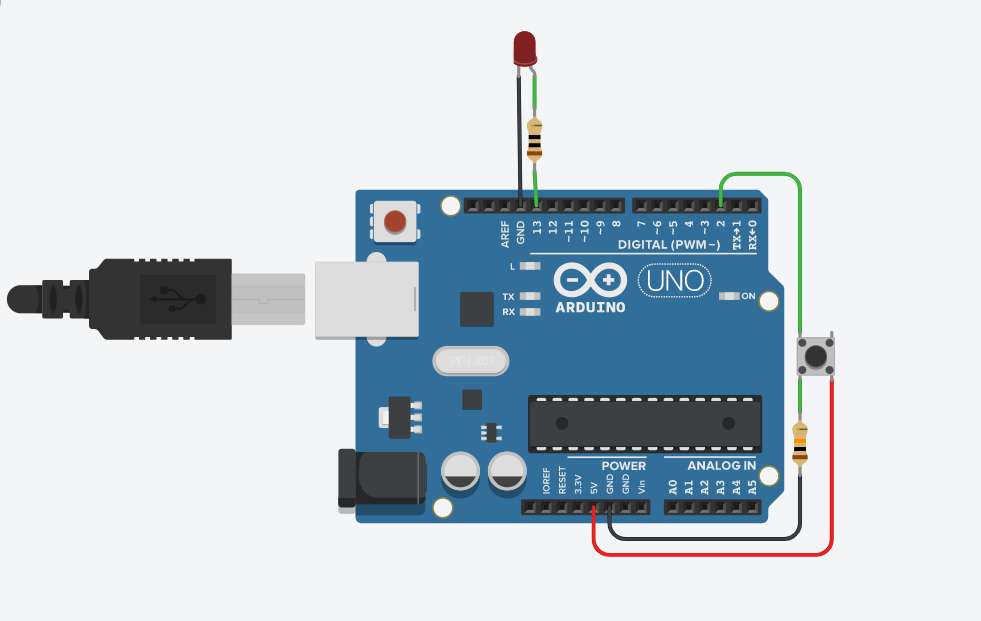

   The circuit:
  * LED attached from pin 13 to ground
  * pushbutton attached to pin 2 from +5V
  * 10K resistor attached to pin 2 from ground
  * Note: on most Arduinos there is already an LED
    on the board  attached to pin 13.
*/

int buttonState = 0;

void setup()
{
  pinMode(2, INPUT);
  pinMode(LED_BUILTIN, OUTPUT);
}

void loop()
{
  // read the state of the pushbutton value
  buttonState = digitalRead(2);
  // check if pushbutton is pressed.  if it is, the
  // buttonState is HIGH
  if (buttonState == HIGH) {
    // turn LED on
    digitalWrite(LED_BUILTIN, HIGH);
  } else {
    // turn LED off
    digitalWrite(LED_BUILTIN, LOW);
  }
  delay(10); // Delay a little bit to improve simulation performance
}
